C# Sample : 주사위 번호 맞추기

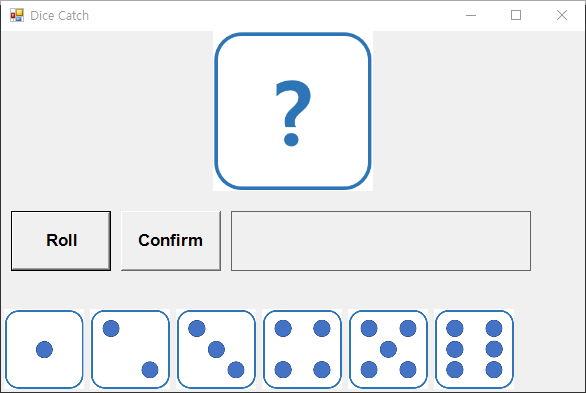

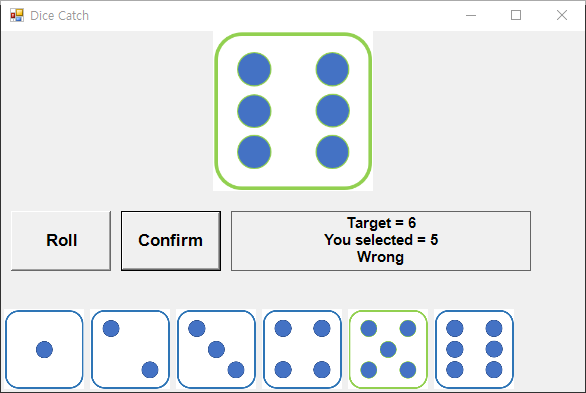

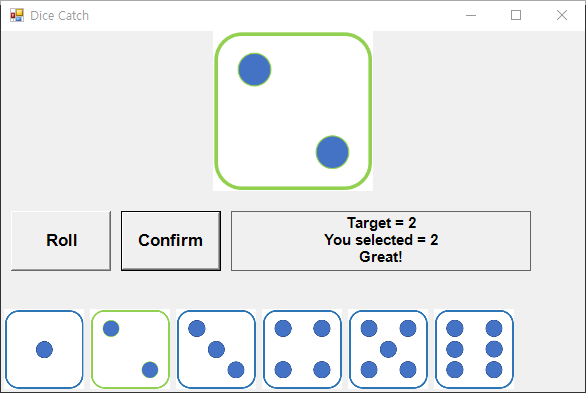

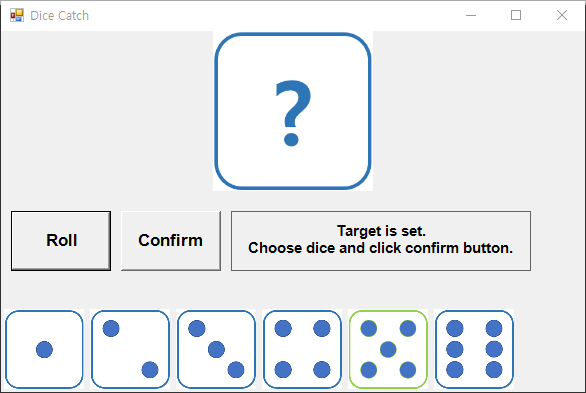

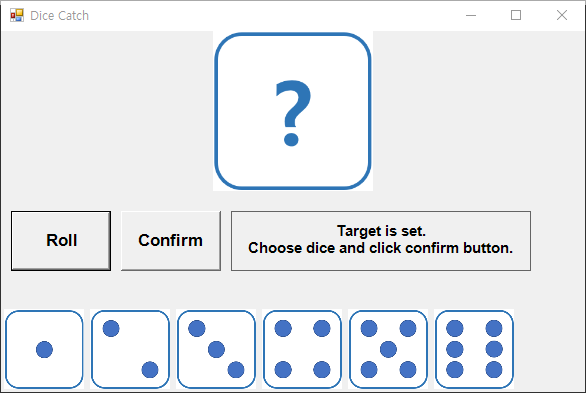

주사위 번호 맞추기 화면

















image source


























using System;
using System.Windows.Forms;
using System.Drawing;
using System.IO;

class DiceCatch
{
    public static void Main()
    {
        // Constants //
        Constants cts = new Constants();
        Form fm = new Form();
        FlowLayoutPanel flp = new FlowLayoutPanel();
        PictureBox pb_dice_main = new PictureBox();
        Button btn_roll = new Button();
        Button btn_confirm = new Button();
        Label lbl_result = new Label();
        PictureBox[] list_pb_user_choice = new PictureBox[6];
        int target_dice_idx = -1;
        int target_dice_number = target_dice_idx + 1;

        int user_select_dice_idx = -1;
        int user_select_dice_number = user_select_dice_idx + 1;


        // Settings //
        fm.Text = cts.form_title;
        fm.Width = cts.form_width;
        fm.Height = cts.form_height;

        flp.Parent = fm;
        flp.AutoSize = true;
        flp.Dock = DockStyle.Bottom;

        pb_dice_main.Parent = fm;
        pb_dice_main.Image = Image.FromFile(cts.dir_img_dice_0);
        pb_dice_main.SizeMode = PictureBoxSizeMode.StretchImage;
        pb_dice_main.Width = cts.pb_main_width;
        pb_dice_main.Height = cts.pb_main_height;
        pb_dice_main.Left = fm.ClientSize.Width / 2 - pb_dice_main.Width / 2;

        btn_roll.Parent = fm;
        btn_roll.Text = "Roll";
        btn_roll.Width = cts.btn_width;
        btn_roll.Height = cts.btn_height;
        btn_roll.Top = pb_dice_main.Bottom + 20;
        btn_roll.Left = 10;
        btn_roll.Font = new Font("Arial", 13, FontStyle.Bold);

        btn_confirm.Parent = fm;
        btn_confirm.Text = "Confirm";
        btn_confirm.Width = cts.btn_width;
        btn_confirm.Height = cts.btn_height;
        btn_confirm.Top = pb_dice_main.Bottom + 20;
        btn_confirm.Left = btn_roll.Right + 10;
        btn_confirm.Font = new Font("Arial", 13, FontStyle.Bold);

        lbl_result.Parent = fm;
        lbl_result.Width = cts.label_width;
        lbl_result.Height = cts.label_height;
        lbl_result.Top = pb_dice_main.Bottom + 20;
        lbl_result.Left = btn_confirm.Right + 10;
        lbl_result.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle;
        lbl_result.TextAlign = System.Drawing.ContentAlignment.MiddleCenter;
        lbl_result.Font = new Font("Arial", 11, FontStyle.Bold);

        for (int i = 0; i < cts.list_dir_img_dice.Length; i++)
        {
            list_pb_user_choice[i] = new PictureBox();
            list_pb_user_choice[i].Parent = flp;
            list_pb_user_choice[i].Image = Image.FromFile(cts.list_dir_img_dice[i]);
            list_pb_user_choice[i].SizeMode = PictureBoxSizeMode.StretchImage;
            list_pb_user_choice[i].Width = cts.pb_dice_user_choice_width;
            list_pb_user_choice[i].Height = cts.pb_dice_user_choice_height;
        }


        // Event //
        void btn_roll_click(object sender, EventArgs e)
        {
            Random rand = new Random();
            target_dice_idx = rand.Next(6);
            target_dice_number = target_dice_idx + 1;

            lbl_result.Text = "Target is set.\nChoose dice and click confirm button.";
            pb_dice_main.Image = Image.FromFile(cts.dir_img_dice_0);

            for (int i = 0; i < list_pb_user_choice.Length; i++)
            {
                list_pb_user_choice[i].Image = Image.FromFile(cts.list_dir_img_dice[i]);
            }

            user_select_dice_idx = -1;
            user_select_dice_number = user_select_dice_number + 1;
        }
        btn_roll.Click += new EventHandler(btn_roll_click);

        void select_dice(object sender, EventArgs e)
        {
            PictureBox pb_user_select = (PictureBox)sender;

            for (int i = 0; i < list_pb_user_choice.Length; i++)
            {
                if (pb_user_select == list_pb_user_choice[i])
                {
                    list_pb_user_choice[i].Image = Image.FromFile(cts.list_dir_img_dice_selected[i]);

                    user_select_dice_idx = i;
                    user_select_dice_number = user_select_dice_idx + 1;
                }
                else
                {
                    list_pb_user_choice[i].Image = Image.FromFile(cts.list_dir_img_dice[i]);
                }
            }
        }
        for (int i = 0; i < list_pb_user_choice.Length; i++)
        {
            list_pb_user_choice[i].Click += new EventHandler(select_dice);
        }

        void btn_confirm_click(object sender, EventArgs e)
        {
            if (target_dice_idx < 0 | 5 < target_dice_idx)
            {
                lbl_result.Text = "You should click Roll button first.";
                pb_dice_main.Image = Image.FromFile(cts.dir_img_dice_0);

                for (int i = 0; i < list_pb_user_choice.Length; i++)
                {
                    list_pb_user_choice[i].Image = Image.FromFile(cts.list_dir_img_dice[i]);
                }
            }
            else if (user_select_dice_idx < 0 | 5 < user_select_dice_idx)
            {
                lbl_result.Text = "You should select any dice between 1 ~ 6.";
                pb_dice_main.Image = Image.FromFile(cts.dir_img_dice_0);

                for (int i = 0; i < list_pb_user_choice.Length; i++)
                {
                    list_pb_user_choice[i].Image = Image.FromFile(cts.list_dir_img_dice[i]);
                }
            }
            else
            {
                if (target_dice_idx == user_select_dice_idx)
                {
                    lbl_result.Text = $"Target = {target_dice_number}\nYou selected = {user_select_dice_number}\nGreat!";
                }
                else
                {
                    lbl_result.Text = $"Target = {target_dice_number}\nYou selected = {user_select_dice_number}\nWrong";
                }

                pb_dice_main.Image = Image.FromFile(cts.list_dir_img_dice_selected[target_dice_idx]);

                target_dice_idx = -1;
                target_dice_number = target_dice_number + 1;
                user_select_dice_idx = -1;
                user_select_dice_number = user_select_dice_number + 1;
            }
        }
        btn_confirm.Click += new EventHandler(btn_confirm_click);


        // Main //
        Application.Run(fm);
    }
}


class Constants
{
    // Constants //
    public string form_title = "Dice Catch";
    public int form_width = 600;
    public int form_height = 400;

    public int pb_main_width = 160;
    public int pb_main_height = 160;

    public int btn_width = 100;
    public int btn_height = 60;

    public int label_width = 300;
    public int label_height = 60;

    public int pb_dice_user_choice_width = 80;
    public int pb_dice_user_choice_height = 80;

    public string dir_source = "C:\\Users\\Public\\mysource\\";
    public string dir_img_dice_0;
    public string[] list_dir_img_dice = new string[6];
    public string[] list_dir_img_dice_selected = new string[6];



    // Constructor //
    public Constants()
    {
        string[] list_dir_img_source = Directory.GetFiles(this.dir_source, "dice_main_*.png");
        for (int i = 0; i < list_dir_img_source.Length; i++)
        {
            if (i == 0)
            {
                dir_img_dice_0 = list_dir_img_source[i];
            }
            else
            {
                list_dir_img_dice[i - 1] = list_dir_img_source[i];
            }
        }

        list_dir_img_dice_selected = Directory.GetFiles(this.dir_source, "dice_select_*.png");
    }
}
